Question about BeaEngine [delphi]

[ding]

Hello,

I have BeaEngine unit source in delphi , which i've found quiet useful since I love low level stuff and I hope I will be able to code my own debugger oneday .

It's hard to understand the code , @kao if you can please explain to me how it works since you've updated this unit , my other question is :

does all debuggers and disassemblers use the same methodology ?

I started reading Intel manual but my native language is not english therefore it's hard to understand each line . are there any alternatives ?

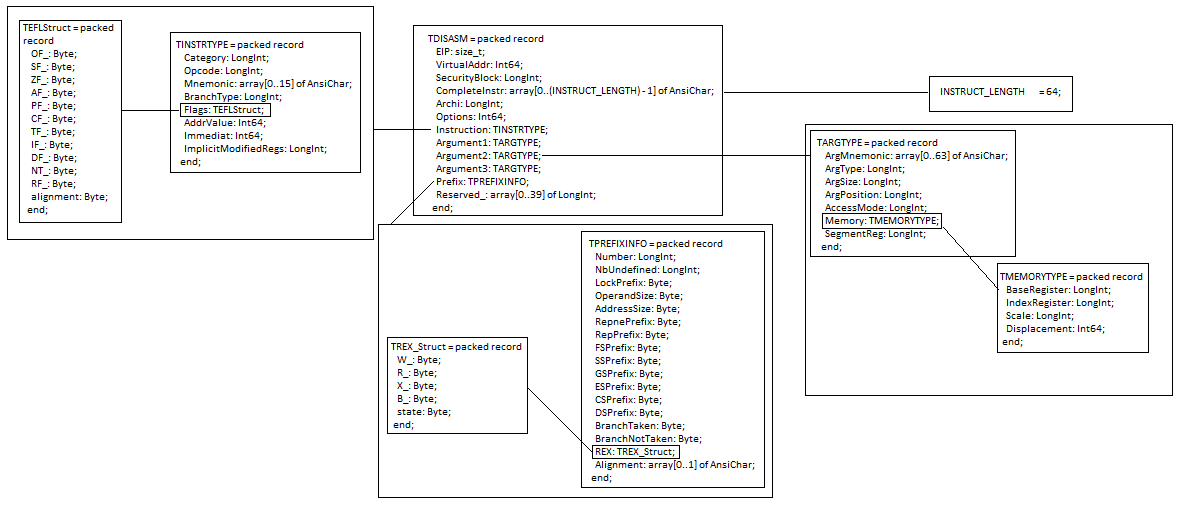

all I did was making a simple diagram to avoid complexity because records are nested .

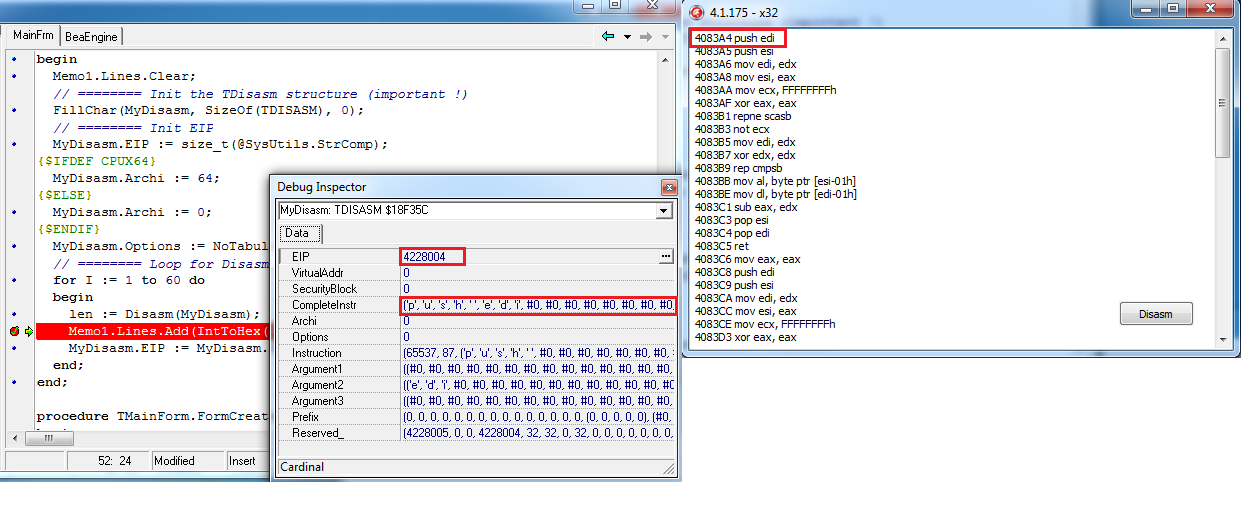

after steping , The EIP doesn't point to the address of the first instruction ? also , I don't really understand how CompleteInStr got filled with Push edi  .

Ding

[kao]

Hi Ding,
I just fixed some (obvious) issues with the Delphi interface, I didn't write the complete unit. So, I'm afraid I can't answer your questions.

Cheers,
kao.

[ding]

11 minutes ago, kao said:

Hi Ding,
I just fixed some (obvious) issues with the Delphi interface, I didn't write the complete unit. So, I'm afraid I can't answer your questions.

Cheers,
kao.

It's totally Okay , I'll search again and wait for other answers as well .

Regards ,



[tjr]

4228004 is 4083A4 in decimal.

[ding]

17 minutes ago, tjr said:

4228004 is 4083A4 in decimal.

OMG ! I didn't pay attention to that , Thanks for alerting me .

[ding]

I found this paper , it has some useful informations but it's incomplete , I guess the author stopped here ! and didn't bother to release others parts .

Ding

Writing disassembler.pdf
