CopyToAsm - x64dbg plugin

[fearless]

A plugin to copy a selected disassembly range in the x64dbg cpu view tab and convert to a masm compatible style assembler code and output to clipboard or the reference view tab.



Features

• Copy selected range to assembler style code.
• Outputs assembler code to clipboard or reference view.
• Adds labels for jump destinations.
• Adjusts jump instructions to point to added labels.
• Indicates if jump destinations are outside selection range.
• Code comments to indicate start/end and outside range.

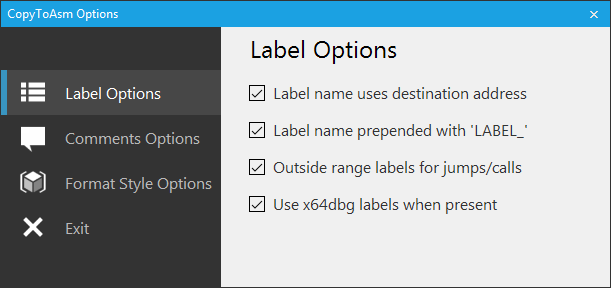

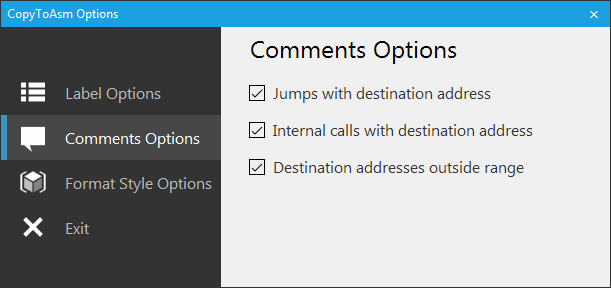

• Options to adjust comments and label outputs.

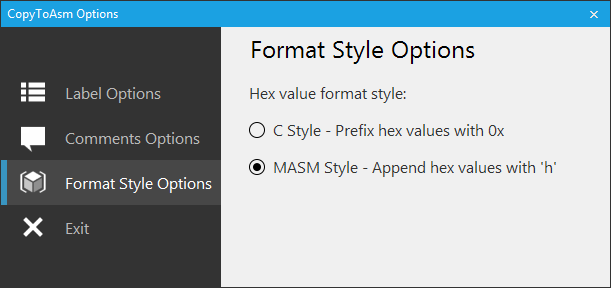

• Format hex values as C style (0x) or Masm style.
• Registered commands: CopyToAsmClip (ctac) and CopyToAsmRef (ctar)



How To Install

• Copy the CopyToAsm.dp32 file to your x64dbg\x32\plugins folder
• Copy the CopyToAsm.dp64 file to your x64dbg\x64\plugins folder



How To Use

• Open x64dbg
• Open target
• Select lines of disassembly in the cpu tab window
• Select CopyToAsm plugin
• Select copy to clipboard (or copy to reference view tab)
• Paste into text document (if previously copied to clipboard)


Project Pages
https://github.com/mrfearless/CopyToAsm-Plugin-x86
https://github.com/mrfearless/CopyToAsm-Plugin-x64



Downloads
CopyToAsm-Plugin-x86
CopyToAsm-Plugin-x64



Some screenshots



See wiki example for more details: szLen example

Raw x64dbg disassembly of szLen function of masm32 library:

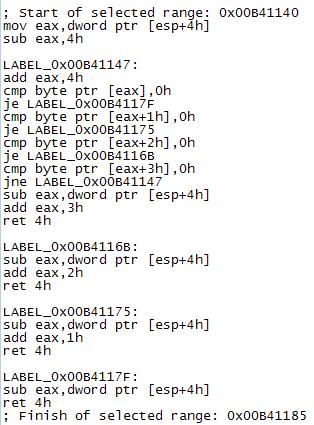

Copied and processed asm code pasted to clipboard:

Edited March 4, 2018 by fearless
added szLen images
