Posted September 23Sep 23 Hi guys,I'll start by saying I don't have much experience with WinApi. I'd like to show you the code for my keygen template. Any suggestions or improvements are welcome.I'm currently unable to set transparency in edit texts. If anyone knows how to do this without forcing redrawing using invalidateRect, I'd be very grateful.I also wanted to point out that I used LLMs because I couldn't find much online about managing transparency in edit texts.Thanks in advance, hacktooth.IMPORTANT DUE INCOPATIBILE UFMOD LIBRARY ARCHITETTURE : Target: Release x86HERE THE SOURCE CODE:#include <windows.h> #include <wingdi.h> #include "ufmod.h" #include "resource.h" #include "song.h" #pragma comment(lib, "Msimg32.lib") #pragma comment(lib, "ufmod.lib") #pragma comment(lib, "winmm.lib") HBITMAP hBackground = NULL; HBRUSH hBrushBackground = NULL; COLORREF transparentColor = RGB(255, 0, 255); // Magenta color key HBITMAP hBtnCloseNormal = NULL; HBITMAP hBtnCloseHover = NULL; INT_PTR CALLBACK DialogProc(HWND hwndDlg, UINT uMsg, WPARAM wParam, LPARAM lParam) { switch (uMsg) { case WM_INITDIALOG: SetDlgItemText(hwndDlg, EDIT_username, L"Enter Username"); // play chip-tune <3 uFMOD_SetVolume(20); uFMOD_PlaySong(songData, (void*)sizeof(songData), XM_MEMORY); // BMP in background hBackground = LoadBitmap(GetModuleHandle(NULL), MAKEINTRESOURCE(BMP_form)); if (hBackground) { BITMAP bm; GetObject(hBackground, sizeof(bm), &bm); SetWindowPos(hwndDlg, NULL, 0, 0, bm.bmWidth, bm.bmHeight, SWP_NOMOVE | SWP_NOZORDER); } // --- TRASPARENZA --- //SetWindowLong(hwndDlg, GWL_EXSTYLE, GetWindowLong(hwndDlg, GWL_EXSTYLE) | WS_EX_LAYERED); // set magenta color key SetLayeredWindowAttributes(hwndDlg, transparentColor, 0, LWA_COLORKEY); // --- FINE --- // BMP close hBtnCloseNormal = LoadBitmap(GetModuleHandle(NULL), MAKEINTRESOURCE(BMP_close)); hBtnCloseHover = LoadBitmap(GetModuleHandle(NULL), MAKEINTRESOURCE(BMP_close_hover)); if (hBtnCloseNormal) { HWND hBtnClose = GetDlgItem(hwndDlg, BTN_CLOSE); if (hBtnClose) { BITMAP bm; GetObject(hBtnCloseNormal, sizeof(bm), &bm); SetWindowPos(hBtnClose, NULL, 0, 0, bm.bmWidth, bm.bmHeight, SWP_NOMOVE | SWP_NOZORDER); } } return TRUE; case WM_ERASEBKGND: return TRUE; case WM_PAINT: { PAINTSTRUCT ps; HDC hdc = BeginPaint(hwndDlg, &ps); if (hBackground) { HDC hdcMem = CreateCompatibleDC(hdc); HBITMAP hOldBmp = (HBITMAP)SelectObject(hdcMem, hBackground); BITMAP bm; GetObject(hBackground, sizeof(bm), &bm); BitBlt(hdc, 0, 0, bm.bmWidth, bm.bmHeight, hdcMem, 0, 0, SRCCOPY); SelectObject(hdcMem, hOldBmp); DeleteDC(hdcMem); } EndPaint(hwndDlg, &ps); } return TRUE; case WM_DRAWITEM: { LPDRAWITEMSTRUCT lpdis = (LPDRAWITEMSTRUCT)lParam; if (lpdis->CtlID == BTN_CLOSE) { HDC hdcMem = CreateCompatibleDC(lpdis->hDC); HBITMAP hBmpToUse; if (lpdis->itemState & ODS_SELECTED) { hBmpToUse = hBtnCloseHover; // HOVER } else { hBmpToUse = hBtnCloseNormal; // NORMAL } if (hBmpToUse) { HBITMAP hOldBmp = (HBITMAP)SelectObject(hdcMem, hBmpToUse); BitBlt(lpdis->hDC, lpdis->rcItem.left, lpdis->rcItem.top, lpdis->rcItem.right - lpdis->rcItem.left, lpdis->rcItem.bottom - lpdis->rcItem.top, hdcMem, 0, 0, SRCCOPY); SelectObject(hdcMem, hOldBmp); } DeleteDC(hdcMem); } } return TRUE; case WM_CTLCOLOREDIT: { HDC hdcEdit = (HDC)wParam; HWND hwndEdit = (HWND)lParam; if (GetDlgCtrlID(hwndEdit) == EDIT_username) { SetTextColor(hdcEdit, RGB(255, 255, 255)); SetBkMode(hdcEdit, TRANSPARENT); return (INT_PTR)GetStockObject(NULL_BRUSH); // NULL_BRUSH instead HOLLOW_BRUSH } break; } case WM_CTLCOLORSTATIC: { HDC hdcEdit = (HDC)wParam; HWND hwndEdit = (HWND)lParam; if (GetDlgCtrlID(hwndEdit) == EDIT_serial || GetDlgCtrlID(hwndEdit) == ABOUT) { SetTextColor(hdcEdit, RGB(255, 255, 255)); SetBkMode(hdcEdit, TRANSPARENT); return (INT_PTR)GetStockObject(NULL_BRUSH); } break; } case WM_LBUTTONDOWN: SendMessage(hwndDlg, WM_NCLBUTTONDOWN, HTCAPTION, 0); return TRUE; case WM_COMMAND: switch (LOWORD(wParam)) { case EDIT_username: { if (HIWORD(wParam) == EN_CHANGE) { char username[256]; GetDlgItemTextA(hwndDlg, EDIT_username, username, 256); SetDlgItemTextA(hwndDlg, EDIT_serial, username); } // REPAINTING HWND hwndEdit = (HWND)lParam; RECT rect; GetWindowRect(hwndEdit, &rect); ScreenToClient(hwndDlg, (POINT*)&rect.left); ScreenToClient(hwndDlg, (POINT*)&rect.right); InvalidateRect(hwndDlg, &rect, TRUE); HWND hwndSerial = GetDlgItem(hwndDlg, EDIT_serial); //RECT rect; GetWindowRect(hwndSerial, &rect); ScreenToClient(hwndDlg, (POINT*)&rect.left); ScreenToClient(hwndDlg, (POINT*)&rect.right); // Ridisegna l'area di EDIT_serial InvalidateRect(hwndDlg, &rect, TRUE); break; } case EDIT_serial: if (HIWORD(wParam) == EN_CHANGE) { } break; case BTN_CLOSE: uFMOD_StopSong(); EndDialog(hwndDlg, wParam); return TRUE; } break; case WM_DESTROY: if (hBackground) { DeleteObject(hBackground); hBackground = NULL; } if (hBtnCloseNormal) { DeleteObject(hBtnCloseNormal); hBtnCloseNormal = NULL; } if (hBtnCloseHover) { DeleteObject(hBtnCloseHover); hBtnCloseHover = NULL; } PostQuitMessage(0); break; } return FALSE; } int WINAPI WinMain(HINSTANCE hInstance, HINSTANCE hPrevInstance, LPSTR lpCmdLine, int nCmdShow) { DialogBox(hInstance, MAKEINTRESOURCE(IDD_DIALOG1), NULL, DialogProc); return 0; }template keygen.zip Edited September 23Sep 23 by hacktooth delete not necessary comments on code
September 25Sep 25 file not found: ...\close.bmpfile not found: ...\close-hover.bmpfile not found: ...\form.bmp

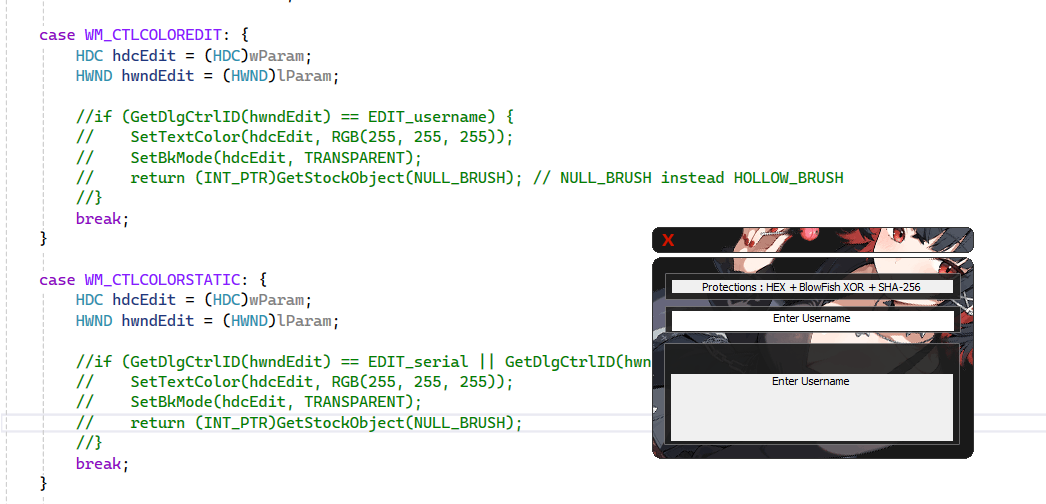

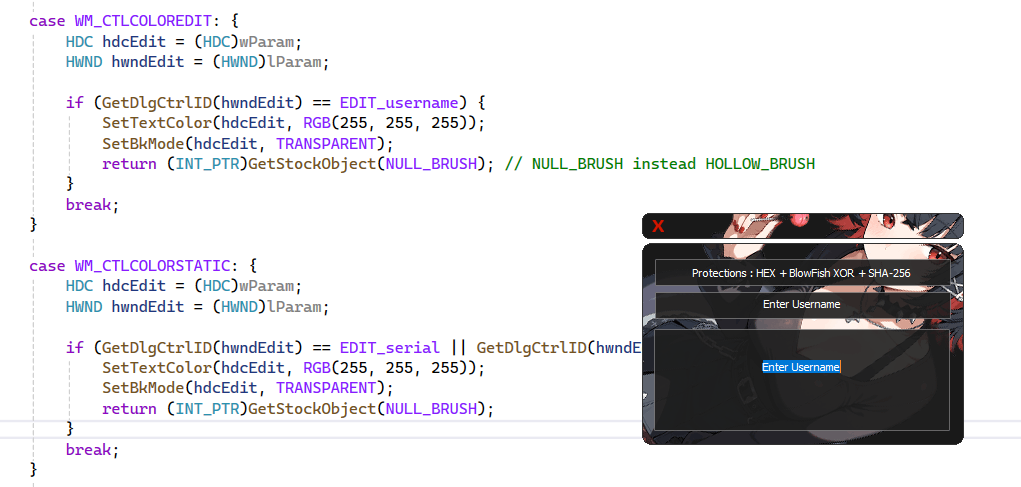

September 25Sep 25 On 9/23/2025 at 5:33 AM, hacktooth said:I'm currently unable to set transparency in edit texts.your code seems to run fine...edittext transparency commented out (can clearly see the edittext control)original code not commented out (looks like the form.bmp (as ripped from the supplied exe)) Edited September 25Sep 25 by T-rad fixed spelling
September 25Sep 25 Author I commented out that portion of code because transparency works correctly, but if you look closely, it generates artifacts, especially when selecting text.However, I solved the problem just last night by looking at some templates on the forum in asm x86 and making the appropriate changes. Below, I show all the updated code.In attachment you will find image resource and the exe file.#include <windows.h> #include <wingdi.h> #include "ufmod.h" #include "resource.h" #include "song.h" #pragma comment(lib, "Msimg32.lib") #pragma comment(lib, "ufmod.lib") #pragma comment(lib, "winmm.lib") HINSTANCE hInst; HBITMAP hBackground = NULL; HBRUSH hBrushBackground = NULL; HBRUSH hBrush; COLORREF transparentColor = RGB(255, 0, 255); // Magenta color key // Bitmap per il pulsante di chiusura HBITMAP hBtnCloseNormal = NULL; HBITMAP hBtnCloseHover = NULL; // Procedura finestra del dialogo INT_PTR CALLBACK DialogProc(HWND hwndDlg, UINT uMsg, WPARAM wParam, LPARAM lParam) { switch (uMsg) { case WM_INITDIALOG: { HICON hIcon = LoadIcon(hInst, MAKEINTRESOURCE(IDI_ICON1)); SendMessage(hwndDlg, WM_SETICON, ICON_BIG, (LPARAM)hIcon); SetWindowText(hwndDlg, L"Keygen Template by jNe"); // Imposta il testo predefinito SetDlgItemText(hwndDlg, EDIT_username, L"Enter Username"); // play chip-tune <3 uFMOD_SetVolume(20); uFMOD_PlaySong(songData, (void*)sizeof(songData), XM_MEMORY); // BMP in background hBackground = LoadBitmap(GetModuleHandle(NULL), MAKEINTRESOURCE(BMP_form)); hBrush = CreatePatternBrush(hBackground); // set magenta color key SetLayeredWindowAttributes(hwndDlg, transparentColor, 0, LWA_COLORKEY); // --- FINE --- // BMP close hBtnCloseNormal = LoadBitmap(GetModuleHandle(NULL), MAKEINTRESOURCE(BMP_close)); hBtnCloseHover = LoadBitmap(GetModuleHandle(NULL), MAKEINTRESOURCE(BMP_close_hover)); if (hBtnCloseNormal) { HWND hBtnClose = GetDlgItem(hwndDlg, BTN_CLOSE); if (hBtnClose) { BITMAP bm; GetObject(hBtnCloseNormal, sizeof(bm), &bm); SetWindowPos(hBtnClose, NULL, 0, 0, bm.bmWidth, bm.bmHeight, SWP_NOMOVE | SWP_NOZORDER); } } } return TRUE; case WM_ERASEBKGND: return TRUE; case WM_PAINT: { PAINTSTRUCT ps; HDC hdc = BeginPaint(hwndDlg, &ps); if (hBackground) { HDC hdcMem = CreateCompatibleDC(hdc); HBITMAP hOldBmp = (HBITMAP)SelectObject(hdcMem, hBackground); BITMAP bm; GetObject(hBackground, sizeof(bm), &bm); BitBlt(hdc, 0, 0, bm.bmWidth, bm.bmHeight, hdcMem, 0, 0, SRCCOPY); SelectObject(hdcMem, hOldBmp); DeleteDC(hdcMem); } EndPaint(hwndDlg, &ps); } return TRUE; case WM_DRAWITEM: { LPDRAWITEMSTRUCT lpdis = (LPDRAWITEMSTRUCT)lParam; if (lpdis->CtlID == BTN_CLOSE) { HDC hdcMem = CreateCompatibleDC(lpdis->hDC); HBITMAP hBmpToUse; if (lpdis->itemState & ODS_SELECTED) { hBmpToUse = hBtnCloseHover; // HOVER } else { hBmpToUse = hBtnCloseNormal; // NORMAL } if (hBmpToUse) { HBITMAP hOldBmp = (HBITMAP)SelectObject(hdcMem, hBmpToUse); BitBlt(lpdis->hDC, lpdis->rcItem.left, lpdis->rcItem.top, lpdis->rcItem.right - lpdis->rcItem.left, lpdis->rcItem.bottom - lpdis->rcItem.top, hdcMem, 0, 0, SRCCOPY); SelectObject(hdcMem, hOldBmp); } DeleteDC(hdcMem); } } return TRUE; case WM_CTLCOLORDLG: return (INT_PTR)hBrush; case WM_CTLCOLOREDIT: case WM_CTLCOLORSTATIC: { HDC hdcEdit = (HDC)wParam; int controlId = GetDlgCtrlID((HWND)lParam); if (controlId == ABOUT) { SetBkMode(hdcEdit, TRANSPARENT); SetTextColor(hdcEdit, RGB(255, 255, 255)); SetBkColor(hdcEdit, 0x00000000); SetBrushOrgEx(hdcEdit, -23, -88, NULL); return (INT_PTR)hBrush; } if (controlId == EDIT_username) { SetBkMode(hdcEdit, TRANSPARENT); SetTextColor(hdcEdit, RGB(255, 255, 255)); SetBkColor(hdcEdit, 0x00000000); SetBrushOrgEx(hdcEdit, -23, -88, NULL); return (INT_PTR)hBrush; } if (controlId == EDIT_serial) { SetBkMode(hdcEdit, TRANSPARENT); SetTextColor(hdcEdit, RGB(255, 255, 255)); SetBkColor(hdcEdit, 0x00000000); SetBrushOrgEx(hdcEdit, -23, -151, NULL); return (INT_PTR)hBrush; } break; } case WM_LBUTTONDOWN: SendMessage(hwndDlg, WM_NCLBUTTONDOWN, HTCAPTION, 0); return TRUE; case WM_COMMAND: switch (LOWORD(wParam)) { case EDIT_username: { if (HIWORD(wParam) == EN_CHANGE) { char username[256]; GetDlgItemTextA(hwndDlg, EDIT_username, username, 256); SetDlgItemTextA(hwndDlg, EDIT_serial, "OMFG-THIS-IS-A-DEMO"); } break; } case BTN_CLOSE: SendMessage(hwndDlg, WM_CLOSE, 0, 0); return TRUE; } break; case WM_CLOSE: uFMOD_StopSong(); if (hBrush) DeleteObject(hBrush); if (hBackground) DeleteObject(hBackground); if (hBtnCloseNormal) DeleteObject(hBtnCloseNormal); if (hBtnCloseHover) DeleteObject(hBtnCloseHover); EndDialog(hwndDlg, 0); return FALSE; } return FALSE; } // Entry point int WINAPI WinMain(HINSTANCE hInstance, HINSTANCE hPrevInstance, LPSTR lpCmdLine, int nCmdShow) { hInst = hInstance; DialogBox(hInstance, MAKEINTRESOURCE(IDD_DIALOG1), NULL, DialogProc); return 0; } keygen template - fix.zip
