DiamondVM

This is a c# file protected with DiamondVM, a KoiVM mod which is really good. No OldRob will desvirtualize it.

File Information

Submitter DanielTG

Submitted 03/19/2021

Category UnPackMe (.NET)

View File

7 hours ago, DanielTG said:

KoiVM mod which is really good.

No, it really isn't. It stops 10-year olds from running ready made tools, and that's about it.



Password is:

Spoiler

Holymoly



There are 3 ways to solve it:

Easy way (1/10) : open file in hex editor, check the strings and find solution there.
Slightly harder (2/10): run crackme under any tracer/profiler, see what functions it calls, see correct string as one of the parameters.
"Extremely hard" (3/10): open DnSpy and Visual Studio and fix OldRod source code. You'll need like 5 minutes for that.

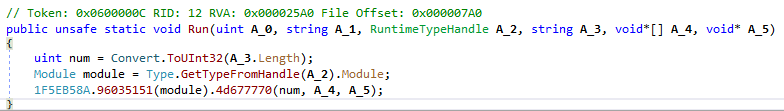

1) Compare original KoiVM method handlers with DiamondVM method handlers:

KoiVM:

DiamondVM:

As you can see, DiamondVM has 2 useless string arguments and "id" parameter has been moved from 2nd position to 1st.
Side note - DiamondVM author tried to get rid of "id" parameter and use A_3.Length instead. However he/she failed miserably and "id" is still there..



Open OldRod file OldRod.Pipeline\Stages\VMMethodDetection\VMMethodDetectionStage.cs" and change method signatures + parameter count:

//..around line 36..

        /*
        private static readonly IList<string> Run1ExpectedTypes = new[]
        {
            "System.RuntimeTypeHandle",
            "System.UInt32",
            "System.Object[]"
        };

        private static readonly IList<string> Run2ExpectedTypes = new[]
        {
            "System.RuntimeTypeHandle",
            "System.UInt32",
            "System.Void*[]",
            "System.Void*",
        };
        */

        private static readonly IList<string> Run1ExpectedTypes = new[]
        {
            "System.UInt32",  // moved
            "System.String",  // useless
            "System.RuntimeTypeHandle",
            "System.String",  // useless
            "System.Object[]"
        };

        private static readonly IList<string> Run2ExpectedTypes = new[]
        {
            "System.UInt32", // moved
            "System.String",  // useless
            "System.RuntimeTypeHandle",
            "System.String",  // useless
            "System.Void*[]",
            "System.Void*",
        };

// ...around line 158 ...
                switch (method.Signature.ParameterTypes.Count)
                {
                    //case 3:
                    case 5:
                        if (HasParameterTypes(method, Run1ExpectedTypes))
                            info.RunMethod1 = method;
                        break;
                    //case 4:
                    case 6:
                        if (HasParameterTypes(method, Run2ExpectedTypes))
                            info.RunMethod2 = method;
                        break;
                }



Build your modified OldRod and run it with parameter "--koi-stream-name #VM " to work around other change in DiamondVM.
Done!

Devirtualized file attached.

UnpackMe.exe_VM-cleaned.zip
