DNGuard HVM v3.953


Mohd
Go to solution Solved by BlackHat,

Recommended Posts

Since the challenge description allows it, I'm going for the quick serial fish for now :)

Spoiler

Secret Key: AWX610881RFFJSDJSZV
URL: http://localhost:52735/
Vendor: Fadi Sami Khalid
Address: Jordan - Amman - Khalda

Approach:

Spoiler

Obfuscation does not really matter if your methods are just simple string comparisons. The x86 generated by the JIT compiler still reveals everything ;)

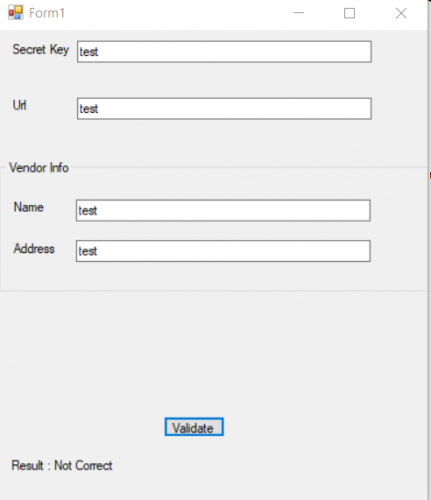

  • Run app, enter random stuff in textboxes, press Validate to trigger the JIT compiler to compile the validation method. Notice text of the label changes to Not Correct.
  • Attach WinDbg, set breakpoint on Control.set_Text (use !name2ee System.Windows.Forms.dll System.Windows.Control.set_Text to get the address to breakpoint). Continue execution and press Validate again.
  • Type !clrstack to notice the click handler is in Form1._01.01.  Copy the address of the handler and dump the x86 code using !U <address>. (dump here https://pastebin.com/br3s09Gv)

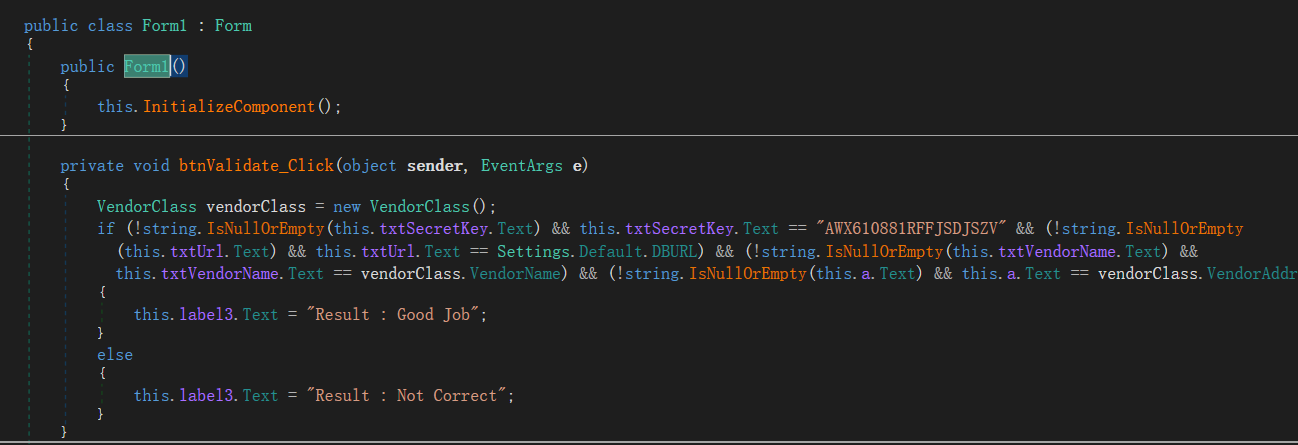

  • Notice in x86 code its just a bunch of string.Equals calls. Set a breakpoint on all string.Equals(string, string) calls in the method. Continue execution and press Validate one more time again.
  • Use !dumpstackobjects to read out the correct values for every one of these calls.



Edited by Washi
  • Like 2
  • Thanks 2
Link to comment
Share on other sites

I would just like to point out that this is DNGuard Enterprise HVM 3.9.5.1 not 3.9.5.3

Edited by AzoresRCE
  • Thanks 1
  • Confused 1
Link to comment
Share on other sites

  • 3 months later...
  • 7 months later...
  • Solution

How to Unpack ?

Spoiler
  1. You need to Hook the JIT Code at Runtime by executing the file.
  2. Now Detect the Method Bodies in JIT and Read it with .Net Libraries, Your main work is to restore the value of Instructions but Here is a catch that Method Tokens are encrypted/locked in HVM Version.
  3. You need to Analyze and understand the Runtime.dll to Restore the value.
  4. You can Restore the Original and Remove proxy by analyzing the methods after devirting.
  5. Strings are also encrypted but just Invoke static string methods in "ZYXDNGuarder" and restore those with Original Value.

Decrypt HVM Token and the Offset Value of HVM Table --> Parse their Structure Schema and Read HVM Table

At Last Read Methods after detecting those and append in your Main Assembly.

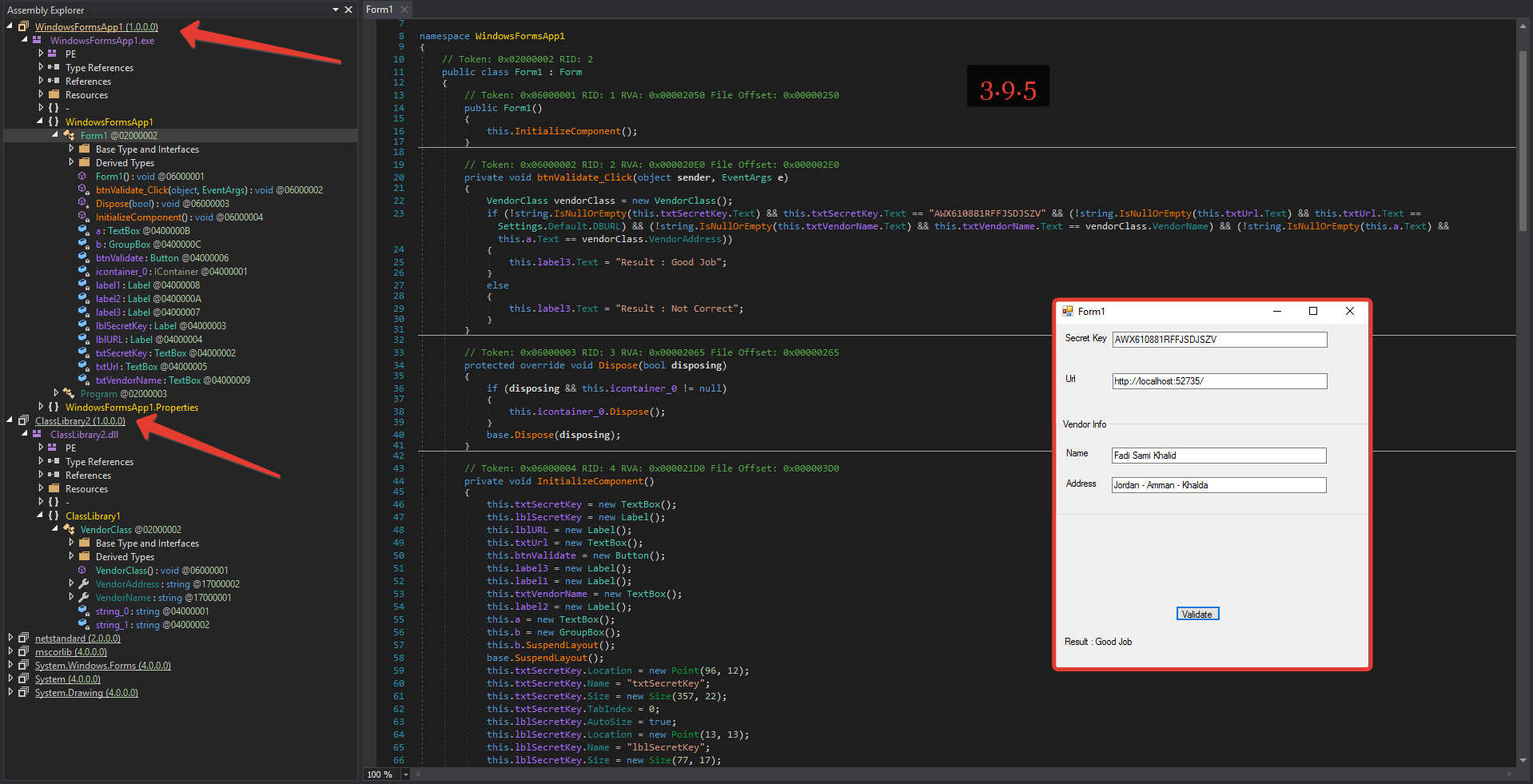

Solution -

Spoiler




3.9.5.3.zip

  • Like 4
  • Thanks 1
Link to comment
Share on other sites

  • 4 weeks later...
  • 2 years later...
CodeExplorer
On 9/10/2020 at 12:09 PM, AzoresRCE said:

I would just like to point out that this is DNGuard Enterprise HVM 3.9.5.1 not 3.9.5.3

Sometimes DNGuard author don't change the version number.

Anyway this unpackme require netstandard 2.0 dll, your can get it from
https://www.dllme.com/dll/files/netstandard/c207d3c8d3776e15d2c43fd26ace385c
or attached.


Yes @0x59. More info needed.


netstandard_x86.zip

Link to comment
Share on other sites
